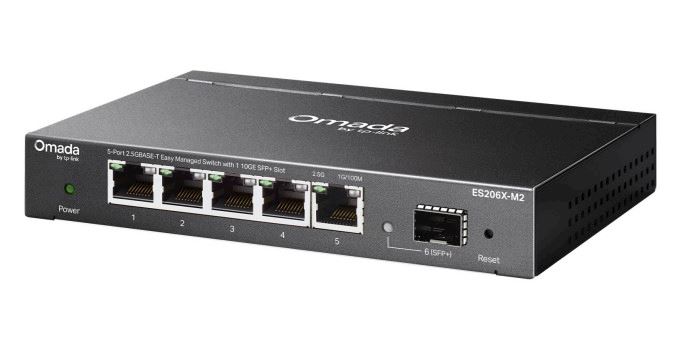

Omada ES206X-M2
ES206X-M2
Log in
to order products or
register for an account
.
- Fast delivery from stock
- European quality, professionally tested
- Advice from telecom specialists
Description
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN
- Port Isolation
- Cable Test△
- QoS△ for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Product
| Brand | Omada |
|---|---|
| Itemcode | ES206X-M2 |
Certificates
| Certification | CE, FCC, RoHS |
|---|
Data transmission
| Forwarding rate | 33.48 Mpps |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| MAC address table | 16000 entries |
| Packet buffer memory | 0.64 MB |
| Switching capacity | 45 Gbit/s |
Design
| Form factor | Desktop/Wall-Mounting |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
Network
| 10G support | No |
|---|---|
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 19.21 BTU/h |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Firmware upgradeable | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Power consumption (max) | 5.63 W |
| Power source | AC |
Security
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
Weight & dimensions
| Depth | 100.7 mm |
|---|---|
| Height | 25.4 mm |
| Weight | 520 g |
| Width | 158 mm |
