Omada MC110CS
MC110CS
Log in
to order products or
register for an account
.
- Fast delivery from stock
- European quality, professionally tested
- Advice from telecom specialists
Description

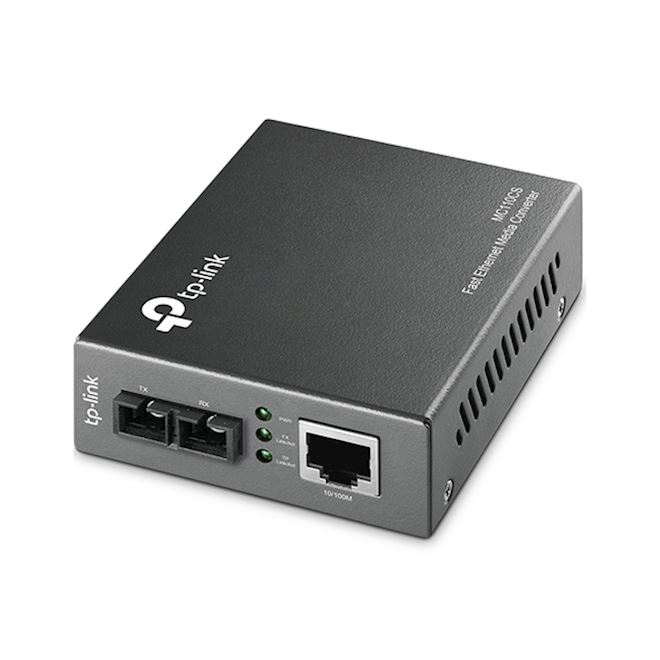

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).
- Complies with 802.3u 10/100Base-TX
- 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 12.5 miles (20km)
Specifications
Product
| Brand | Omada |
|---|---|
| Itemcode | MC110CS |
Certificates
| Compliance certificates | RoHS |
|---|
Features
| LED indicators | Yes |
|---|---|
| Product colour | Black |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Network
| Cable types supported | Cat3, Cat4, Cat5 |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Maximum transfer distance | 12500 m |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 2.4 W |
|---|
Weight & dimensions
| Depth | 73 mm |
|---|---|
| Height | 27 mm |
| Width | 95 mm |
