Description

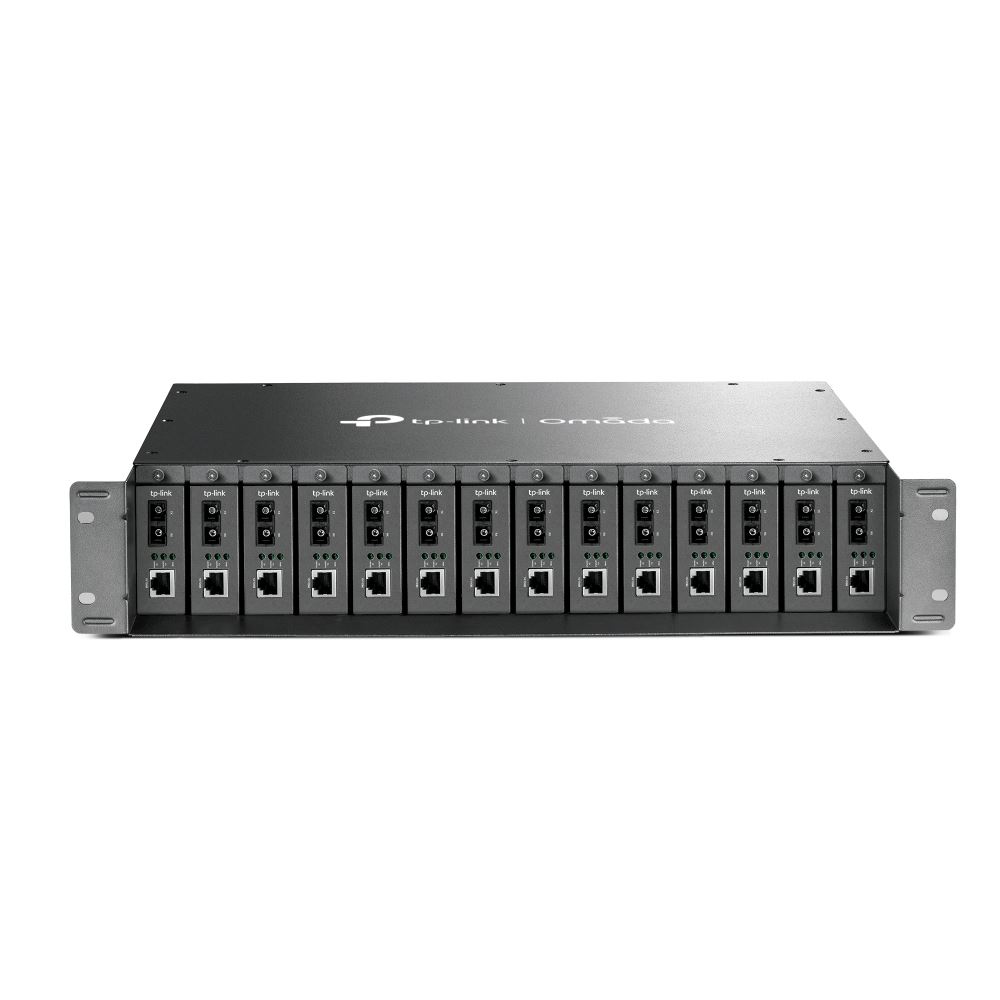

The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.
- 14 bays to house up to 14 media converters
- 9 VDC / 0.6 A power output
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-swappable
- Mounted two cooling fans for better ventilation
- 2U 19-inch rack-mountable
Specifications
Product
| Brand | Omada |
|---|---|
| Itemcode | MC1400 |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging data
| Package depth | 585 mm |
|---|---|
| Package height | 170 mm |
| Package weight | 6.7 kg |
| Package width | 170 mm |
Power
| AC input frequency | 50 / 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
Technical details
| Product colour | Black |
|---|
Weight & dimensions
| Depth | 358 mm |
|---|---|
| Height | 86 mm |
| Width | 482 mm |
